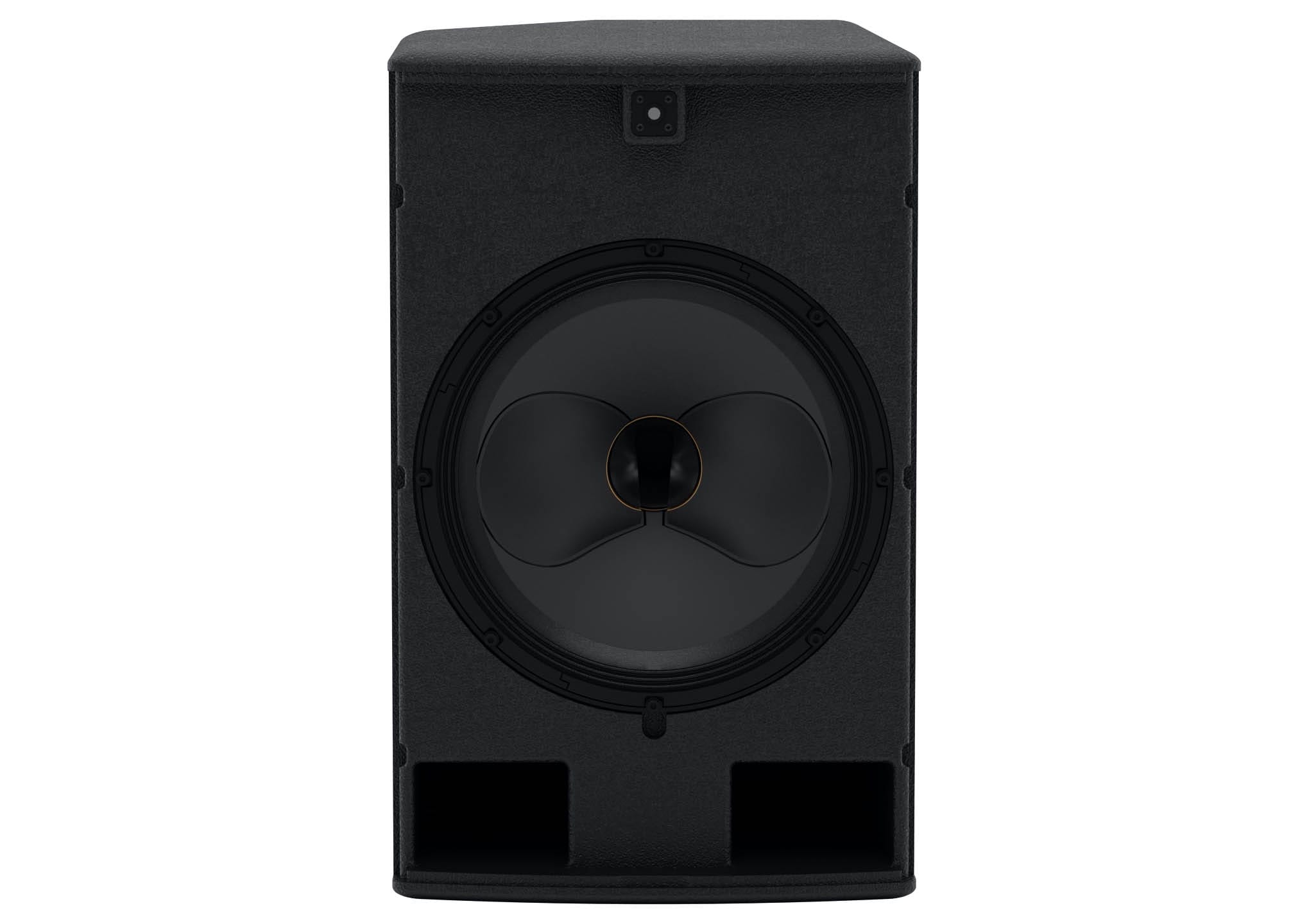

Martin Audio CDD LIVE 15

Martin Audio CDD LIVE 15

na predajni

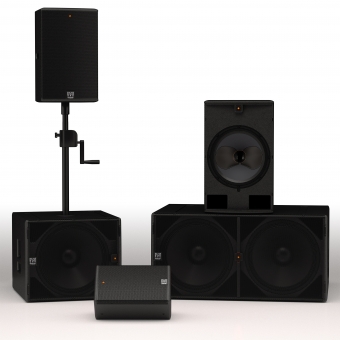

the cdd live series Martin Audio CDD LIVE 15





















Coaxial aktívny špičkový reprobox s DANTE rozhraním

ŠPECIFIKÁCIA



TYPE High-output, Coaxial Differential Dispersion powered two-way system
FREQUENCY
RESPONSE (1)
55Hz – 20kHz ±3dB, -10dB @ 45Hz
DRIVER LF: 15” (380mm)/3” (75mm) voice coil, long excursion, shared ferrite motor system with HF
HF: 1.4” (36mm) exit/3” (75mm) voice coil, titanium dome compression driver
INPUT SENSITIVITY -30dBu for 100dB SPL
MAXIMUM SPL (2) 126dB continuous / 132dB peak
DISPERSION 100˚-60˚ horizontal, 60˚ vertical (user-rotatable)
CROSSOVER 1.5kHz Active LR8 with low latency HF FIR equalisation
Balance presets for pole mount/ pole mount with sub/ stage monitor
Module
Audio input
CONNECTORS Female XLR input, male XLR link output, Dante Audio Neutrik® Ethercon
ANALOGUE INPUT IMPEDANCE 20 kΩ balanced to ground
MAXIMUM ANALOGUE INPUT LEVEL 24.6 Vpp (+21dBu), over voltage protected
Internal Processing Multi-channel DSP, programmable via TCP/IP using VU-Net software
PEQ/shelving filters
Up to 48dB/Oct HPF
Low latency HF FIR filters
Up to 200ms input delay
Pre-set selection via rear panel switch
Network
CONNECTORS 2xNeutrik® Ethercon
PROTOCOL TCP/IP and UDP/IP
Amplifier
TYPE 2 channel switch-mode, class D,
Bridged Tied Load + 1 channel switch-mode, class D
PEAK OUTPUT POWER 2500W total
2000W LF, 500W HF
AVERAGE EFFICIENCY 89%
COOLING External convection cooled, with internal fan
MAXIMUM AMBIENT TEMPERATURE 40°C (104°F) for full output
Power Supply
TYPE Switch mode, fixed frequency with PFC
AC INPUT OPERATING RANGE 85 – 265V ~ AC, 50 – 60Hz
POWER FACTOR > 0.98
NOMINAL POWER CONSUMPTION 160W
MAINS CONNECTOR Neutrik® Powercon True1
Mechanical
ENCLOSURE Extensively braced multi-laminate plywood.
FINISH Textured black PU coating.
PROTECTIVE GRILLE HEX perforated mild steel with protective zinc plating and black powder
coat finish. Backed with black grille cloth.
FITTINGS Top hat for pole mounting
15 x M8 mounting points
Two side pocket handles
Optional weather protection cowl
IP RATING IP24 factory option available
DIMENSIONS (W) 427mm x (H) 696mm x (D) 422mm
(W) 16.81in x (H) x 27.42in (D) 16.61in
WEIGHT 37kg (81.4lbs) excluding Transit cover

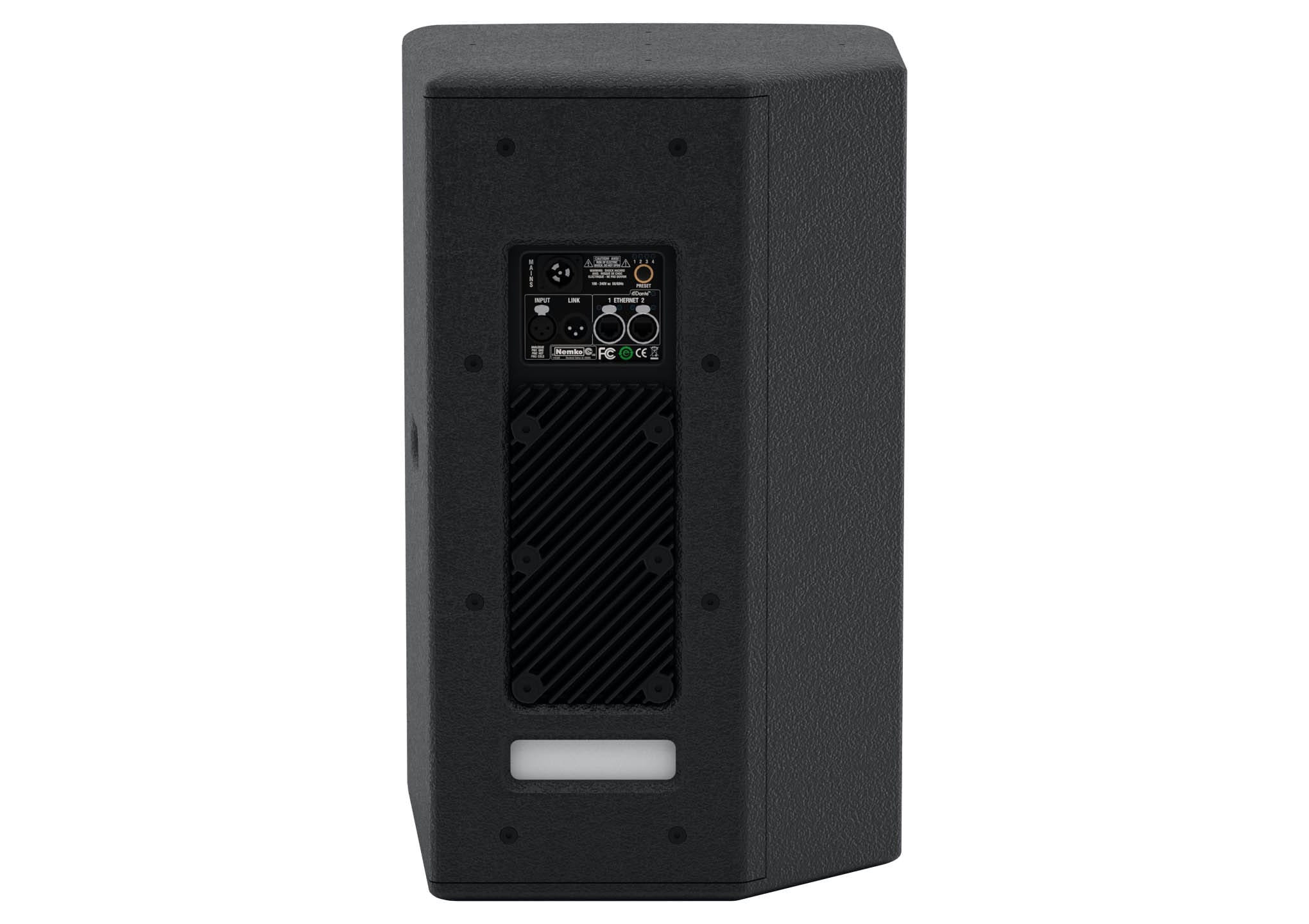

   cdd live 15 back Martin Audio CDD LIVE 15
