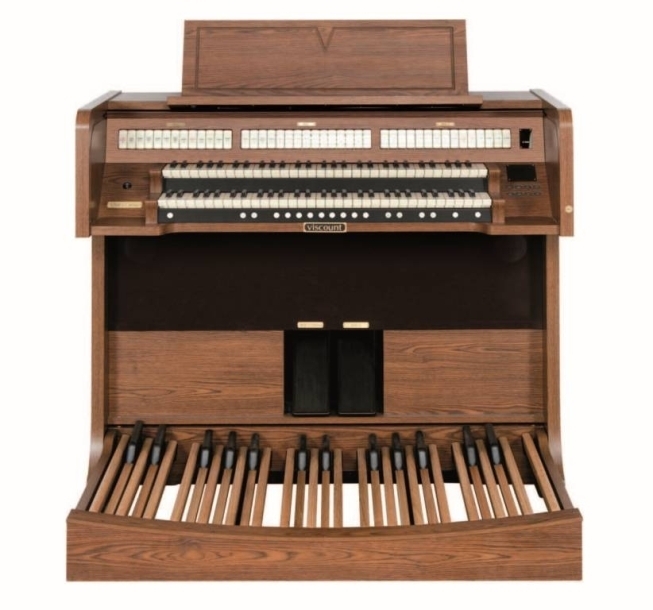

Viscount UNICO CLV4

Viscount UNICO CLV4

na objednávku Cena 7090€

SPECIFICATIONS
Keyboards 2 x 61 notes „tracker touch“ keyboards, with velocity control for MIDI and Orchestra sections.
Pedalboard 30 notes straight, straight concave, radiating concave
Stop Type Tilt tab
Audio Amplifiers 2 x 60 Watt + 1 x 100 Watt
Speakers 5
Expression Pedals 2, Swell and Choir

STOPS and VOICES
Pedal 10
Great 12
Swell 13
Total Speaking Stops 35. Hundreds voices in the internal sound bank
Sound Styles 4 Preset + 4 User. Hundreds sound styles can be loaded and/or stored from/to internal memory and pen drive
Alternative Voices Selectable additional sound for each stop
Orchestra Voices Selectable additional sound for dedicated stop

ACCESSORIES
General Pistons 8
Memory Bank 16
Total Memories 128 general, tens of thousands with pen drive
Piston Sequencer Prev – Next pistons
Automatic Pedal Yes
Enclosed piston Yes
Couplers 3
Transposer -6/+5
General Volume – Reverb Volume With rotary potentiometers
Divisional Midi Enable Yes
Orchestra and Midi Sustain Kick switch located on the side of the expression pedal
Pen Drive Mass Storage Usual Usb pen drive can be used as mass storage
Sequencer Remote Control Optional radio no directive 50 mt distance remote control with built in 2×16 display

DISPLAY 128 x 64 dots graphic with backlight
Edit Voice Parameters Stop by stop adjustable voice parameters
Divisional Volume Separate for each division
Tremulant 2, Separately for each manuals depth and speed adjustable
Reverberation 8 Types
Ensemble Effect Adjustable
Insufficient Air Pressure Effect Proportional to the active Voices
Tracker Keyboard Effect Yes
Historic Temperaments Kirnberger II, Kirnberger III, Werckmeister III, Werckmeister IV, Werckmeister V, Vallotti, Silbermann I, Silbermann II, Kellner 1975, Meantone, Meantone pure minor third, Zarlino, Sauveur I, Sauveur II, Barca, Rameau, Pythagorean; each with programmable „Tonic“ Key Note
Keyboards Inversion Yes
Output Router Stop by stop adjustable windchest layout
External Out Volume Control independent volume control for each channel
External Out 5 Band Equalizer independent equalizer for each channel
Internal Ampl. 5 Band Equalizer Yes
Midi Programmable Tx/Rx Midi Ch., Tx/Rx Midi Filter, Send PG, Keyb. Midi Velocity
Sequencer Interactive song sequencer with overdubbing function
Demo Songs Yes
File Management Copy, Load, Save, Rename, Delete etc.
Lock Organ With password

CONNECTIONS
Midi In, Out, Thru Yes
Stereo Headphone Out Yes
Stereo Aux In Yes
Mic In With gain control
Multiple Line Out 4+1, (12+1 when replacing standard output board with optional expansion board)
USB (device) to PC (for „Physis Editor“) For finest finishing and personalization like Stop by Stop, Note by Note Volume and Pitch Regulation, Stop disposition, Internal and External Routing, etc. (optional)
USB (host) for Pen Drive Yes

CONSOLE
Cabinet Elegant console in dark oak color, elegant lighted music rack, roll cover and matching bench
Width x Height x Depth without pedalboard cm 126,6×114,5×62,3
Width x Height x Depth with 30 notes radiating concave pedalboard cm 126,6×114,5×111
Weight 121 kg
Great
Double Diapason 16′
Open Diapason I 8′
Open Diapason II 8′
Claribel Flute 8′
Stopped Diapason 8′
Principal 4′
Harmonic Flute 4′
Twelfth 2-2/3′
Fifteenth 2′
Mixture IV
Trumpet 8′
Clarinet 8′
Tremulant
Swell to Great
Midi
Swell
Geigen Diapason 8′
Chimney Flute 8′
Echo Gamba 8′
Voix Celeste 8′
Geigen Principal 4′
Wald Flute 4′
Flageolet 2′
Sesquialtera II
Mixture IV
Contra Fagotto 16′
Cornopean 8′
Oboe 8′
Clarion 4′
Tremulant
Midi
Pedal
Sub Bass 32′
Open Wood 16′
Open Metal 16′
Bourdon 16′
Principal 8′
Bass Flute 8′
Choral Bass 4′
Mixture IV
Trombone 16′
Trumpet 8′
Great to Pedal
Swell to Pedal
Midi
